Availability: | |
---|---|
Features
Voltage:120-277V/60Hz, 120-347V/60Hz as optional
High Lumen Efficiency:Lumen output more than 130 lm/w, reduces energy consumption up to 80% compared to a fluorescent fixture
CCT:3500, 4000 and 5000K
3CCT: One fixture 3 color temp(3500K,4000K,5000K)
3 wattage selectable in wrap light
Ambient Temperature:-25℃~45℃
Certified by DLC 5.1& ETL(cETL)
Guarantee: 5 year warranty
Application

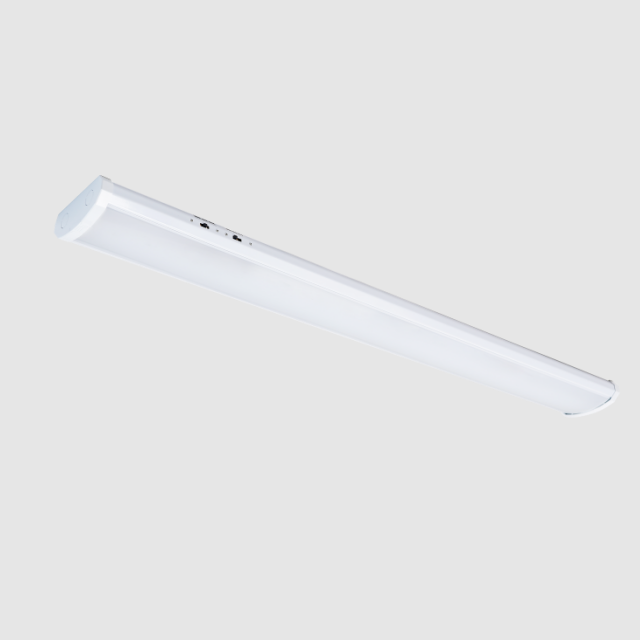

Wrap fixtures are designed to deliver general purpose lighting for surface-mount ceiling applications and are the ideal choice for schools, offices, and retail locations.
Schools, offices
Shipping centers,hospitals, universities etc
Specially used in some indoor commercial lighting environments manufacturing facilities, gymnasiums, warehouse lighting fixtures, and retail aisles
Warehouses, factories & food storage
Car parks & sports facilities
Shipping centers,hospitals, universities etc
Specially used in some indoor industry lighting environments
Accessories

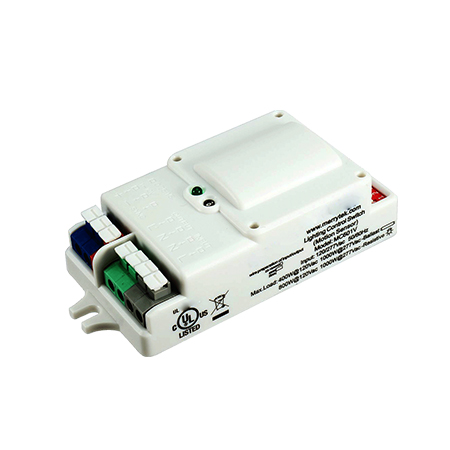

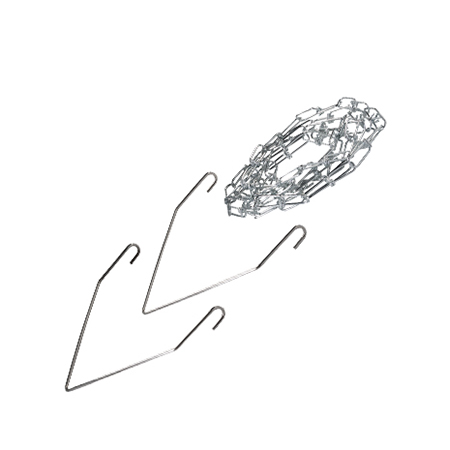

built in sensor | Vhook Chain |
Features
Voltage:120-277V/60Hz, 120-347V/60Hz as optional
High Lumen Efficiency:Lumen output more than 130 lm/w, reduces energy consumption up to 80% compared to a fluorescent fixture
CCT:3500, 4000 and 5000K
3CCT: One fixture 3 color temp(3500K,4000K,5000K)
3 wattage selectable in wrap light
Ambient Temperature:-25℃~45℃
Certified by DLC 5.1& ETL(cETL)
Guarantee: 5 year warranty
Application
Wrap fixtures are designed to deliver general purpose lighting for surface-mount ceiling applications and are the ideal choice for schools, offices, and retail locations.
Schools, offices
Shipping centers,hospitals, universities etc
Specially used in some indoor commercial lighting environments manufacturing facilities, gymnasiums, warehouse lighting fixtures, and retail aisles
Warehouses, factories & food storage
Car parks & sports facilities
Shipping centers,hospitals, universities etc
Specially used in some indoor industry lighting environments
Accessories
built in sensor | Vhook Chain |
Specification
Item | Specification | Model | ||
R1-2WRM25WD3P3C | R1-4WR35WD3P3C | R1-4WRM46WD3P3C | ||
General Performance | Power Consumption | 25W/20W/15W | 35W/28W/20W | 46W/38W/30W |
Lumens Delivered | 2290lm max | 4550lm max | 5980lm max | |
Efficacy(lm/w) | 130 | |||
CRI | 80 | |||
Color Temperature | 3500K/ 4000K /5000K | |||
Lifetime(hours) | 50,000 | |||
Color Consistency | Proprietary binning for uniform color | |||
Power Factor | 0.99 | |||
Input voltage | 120-277V standard (120-347V for option) | |||
Physical | Housing | Plastic | ||
Mounting | Ceiling Mount or Cable Mount | |||
Humidity | 20%-85% RH, non-condensing | |||
Certification | Certification | ETL, cETL, DLC premium, LM-79, LM-80(LED) | ||
Material usage | RoHS compliant; no mercury | |||
Work Temperature | -4°F to 122°F (-20°C to +50°C) operating temperature | |||
Environment | Damp-listed | |||
Warranty | 5 years limited |

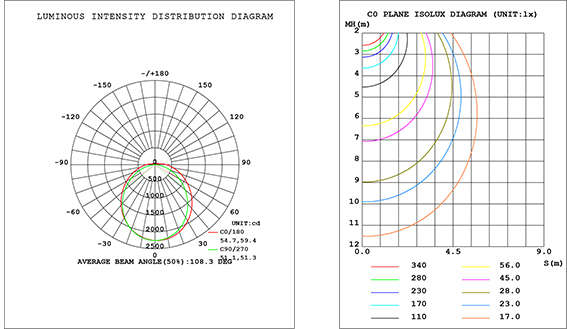

Light Distribution Curve

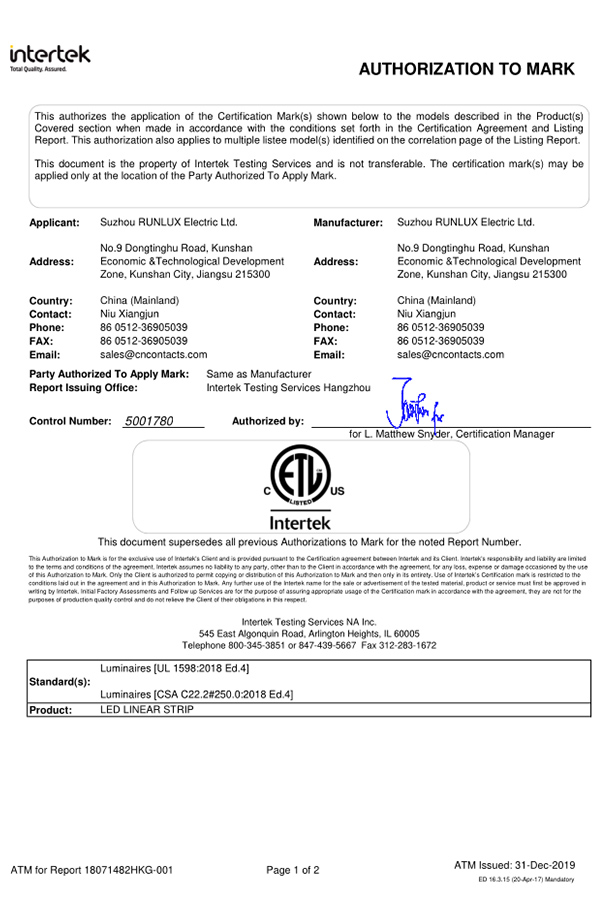

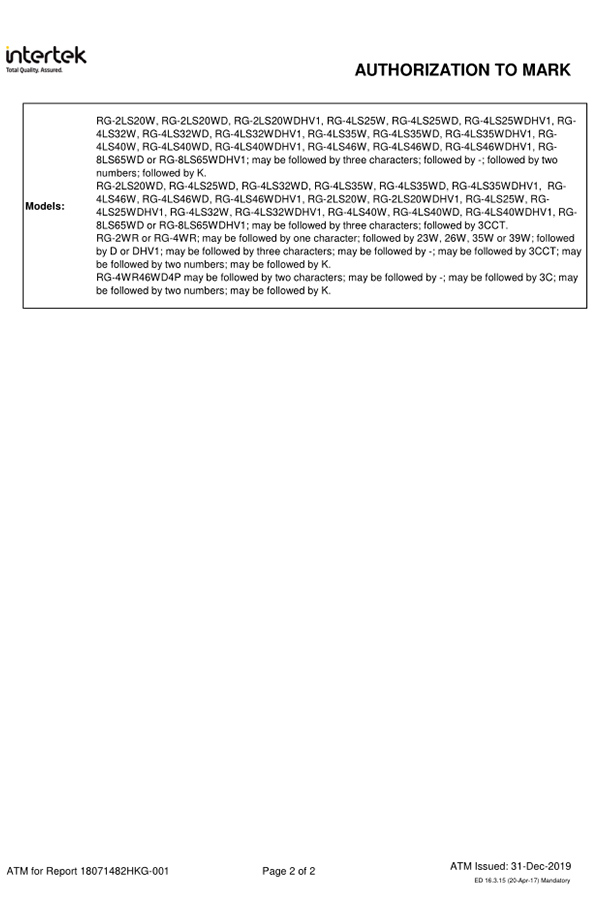

Certification
ETL | ETL |
Specification
Item | Specification | Model | ||
R1-2WRM25WD3P3C | R1-4WR35WD3P3C | R1-4WRM46WD3P3C | ||
General Performance | Power Consumption | 25W/20W/15W | 35W/28W/20W | 46W/38W/30W |
Lumens Delivered | 2290lm max | 4550lm max | 5980lm max | |
Efficacy(lm/w) | 130 | |||
CRI | 80 | |||
Color Temperature | 3500K/ 4000K /5000K | |||
Lifetime(hours) | 50,000 | |||
Color Consistency | Proprietary binning for uniform color | |||
Power Factor | 0.99 | |||
Input voltage | 120-277V standard (120-347V for option) | |||
Physical | Housing | Plastic | ||
Mounting | Ceiling Mount or Cable Mount | |||
Humidity | 20%-85% RH, non-condensing | |||
Certification | Certification | ETL, cETL, DLC premium, LM-79, LM-80(LED) | ||
Material usage | RoHS compliant; no mercury | |||
Work Temperature | -4°F to 122°F (-20°C to +50°C) operating temperature | |||
Environment | Damp-listed | |||
Warranty | 5 years limited |
Light Distribution Curve
Certification
ETL | ETL |
