Availability: | |
---|---|
Features
Voltage:100-277V/60Hz, 120-347V
Patent No.: ZL 20162 0681919.6
3CCT:3500, 4000, 5000K in one.
3Power selectable.
Mounting method:Magnetic led strips and driver, quick-connect
Replacements: Retrofit 2’ x 2’, 1’ x 4’, and 2’ x 4’ “troffers” and 4’ and 8’ linear fluorescent fixtures
ETL+DLC 5.1 Premium
Application

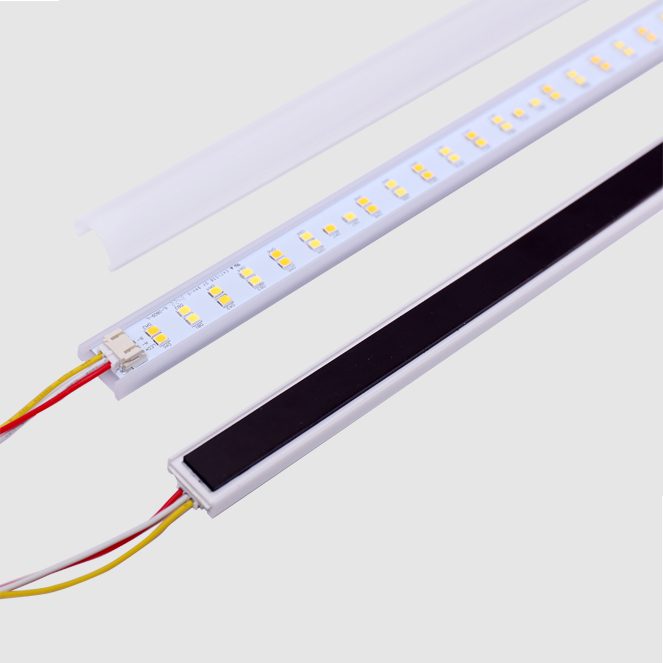

The Magnetic LED Retrofit Kit Strips replace traditional tubes in a variety of commercial applications, including offices, lobbies, hallways and conference rooms in schools, libraries, airports, showrooms and hospitality environments
Features
Voltage:100-277V/60Hz, 120-347V
Patent No.: ZL 20162 0681919.6
3CCT:3500, 4000, 5000K in one.
3Power selectable.
Mounting method:Magnetic led strips and driver, quick-connect
Replacements: Retrofit 2’ x 2’, 1’ x 4’, and 2’ x 4’ “troffers” and 4’ and 8’ linear fluorescent fixtures
ETL+DLC 5.1 Premium
Application
The Magnetic LED Retrofit Kit Strips replace traditional tubes in a variety of commercial applications, including offices, lobbies, hallways and conference rooms in schools, libraries, airports, showrooms and hospitality environments
Model Selection:
1. 3CCT & 3Wattage selectable in one kit, Save 75% Stock
2. The PC lens can be easily added or removed
Rated Power | LED Strips Qty x Length | Model Number | Lumen (strips) | Dimmable | Fits Fixture | Mounting | Certification |
25W/20W/15W | 2pcs x 550mm | R10-22TR25WD3P3C | 3625 | DIM | 2’ x 2’ Troffer | Magnetic/Screw | DLC5.1 Premium |
35W/28W/20W | 2pcs x 1100mm | R10-24TR35WD3P3C | 5075 | 2’ x 4’ Troffer | Magnetic/Screw | DLC5.1 Premium | |
46W/38W/30W | 2pcs x 1100mm | R10-24TR46W3P3C | 6670 | 2’ x 4’ Troffer | Magnetic/Screw | DLC5.1 Premium | |
46W/38W/30W | 4pcs x 1100mm | R10-24TR4S46W3P3C | 6670 | 2’ x 8’ Troffer | Magnetic/Screw | DLC5.1 Premium |
Model Selection:
1. 3CCT & 3Wattage selectable in one kit, Save 75% Stock
2. The PC lens can be easily added or removed
Rated Power | LED Strips Qty x Length | Model Number | Lumen (strips) | Dimmable | Fits Fixture | Mounting | Certification |
25W/20W/15W | 2pcs x 550mm | R10-22TR25WD3P3C | 3625 | DIM | 2’ x 2’ Troffer | Magnetic/Screw | DLC5.1 Premium |
35W/28W/20W | 2pcs x 1100mm | R10-24TR35WD3P3C | 5075 | 2’ x 4’ Troffer | Magnetic/Screw | DLC5.1 Premium | |
46W/38W/30W | 2pcs x 1100mm | R10-24TR46W3P3C | 6670 | 2’ x 4’ Troffer | Magnetic/Screw | DLC5.1 Premium | |
46W/38W/30W | 4pcs x 1100mm | R10-24TR4S46W3P3C | 6670 | 2’ x 8’ Troffer | Magnetic/Screw | DLC5.1 Premium |
