ELECTRICAL

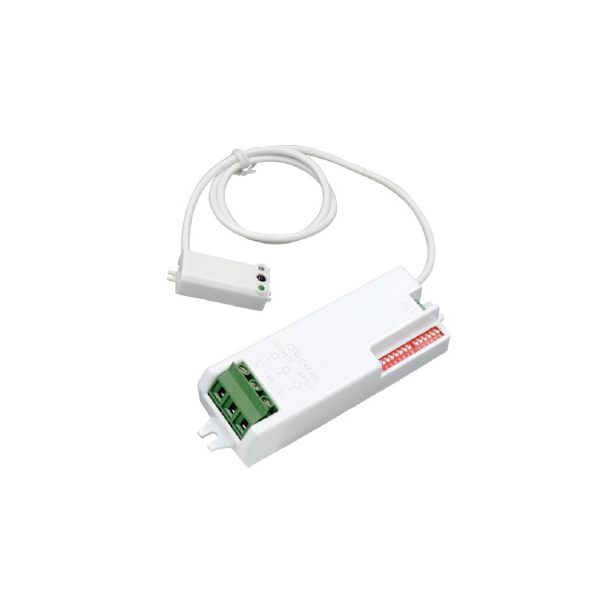

Motion Sensor:

Operating voltage : 120/277/347Vac
Rated load : 120Vac 50/60Hz 3.6A Electronic/magnetic ballast ; 277Vac 50/60Hz 3.4A Electronic/magnetic ballast ; 347Vac 50/60Hz 3.3A Electronic/magnetic ballast
Hf system : 5.8GHz±75MHz，ISM wave band
Transmitting power : <0.5mW
Power consumption : ≤0.5W(stand - by)
Detection Area(Radius) : 4m Max.
Max. Mounting height : 8m
Hold time : Sensor: 5s/30s/1min/5min/10min/15min/30min/ ; Remote control: 5s/30s/1min/10min/15min/30min/
Stand-by Period : Sensor: 0s/1min/3min/5min/10min/30min/+∞ ; Remote control: 0s/1min/3min/5min/10min/30min/+∞
Stand-by DIM Level : 10%/20%/30%/50%
Daylight sensor : 5lux/15lux/30lux/50lux/100lux/150lux/Disable
Operating temperature : -35℃~70℃
IP rating : IP20

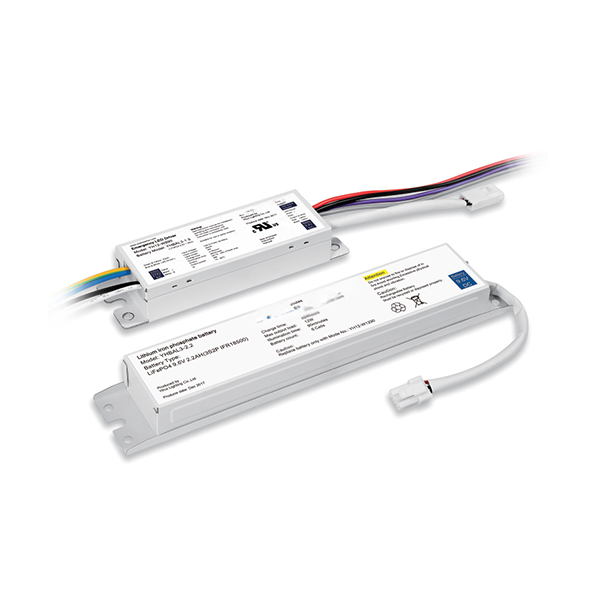

Emergency Power Supply:

Input rated voltage: 100-277V AC 50-60Hz
AC input current 10-100mA
AC Input power rated 6W max
Power factor: >0.5
Charge time ≥24 hours
Charge mode: trickle re-charging on battery.
Output emergency power 16 wattage, 250mA...960mA output current.
Output voltage DC15...52V, DC57V max
Battery capacity (LiFePo4) : 9.6V 1500mAh IFR18650 3S2P
Battery Charging Current 0-250mA
1.5 hours rated duration
Charging indicator light : Red on--Battery is charging;Green light on--Battery is fully charged;Indicator flicker--The device is something wrong and is malfunction.
Max. casing temperature tc 70℃
Lumen Factor: 100lm/Wattage
Reinforced insulation between the supply and the battery circuit.
This unit can recharge the battery normally after reconnecting of battery

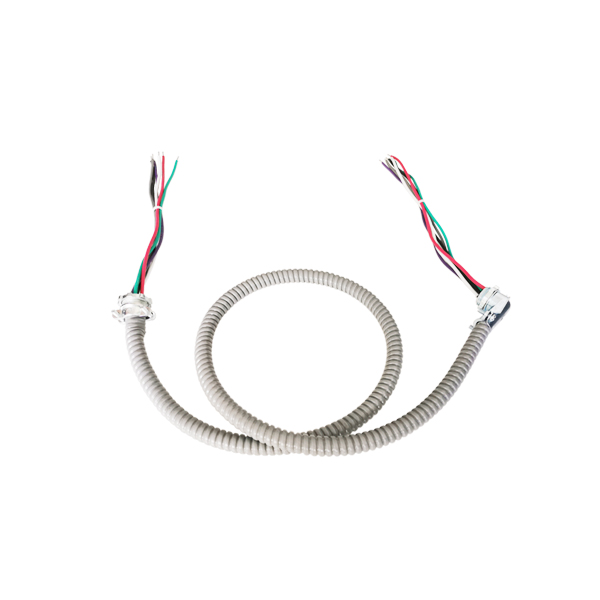

WHIP:

Flexible steel fixture whips are completely pre-assembled and ready to install.
Includes 6 inch wire leads on each end
U.L. cert
Meets requirements of 2011 NEC
25pc Bundle or 200pc Barrel
Solid conductors
Flexible steel fixture whips are completely pre-assembled and ready to install.
Includes 6 inch wire leads on each end
U.L. File Number: E361306, E361307
Meets requirements of 2011 NEC
25pc Bundle or 200pc Barrel
Solid conductors

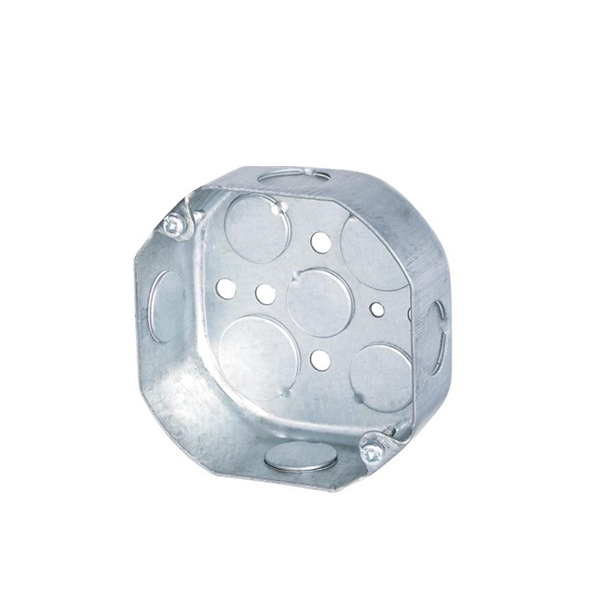

Junction Box:

Size : 4”×4”×1-1/2”
4” Octagonal box Prepositioned depth tabs recessed 1/2”
Thickness : 1.2mm&1.3mm
Material : Galvanized steel
