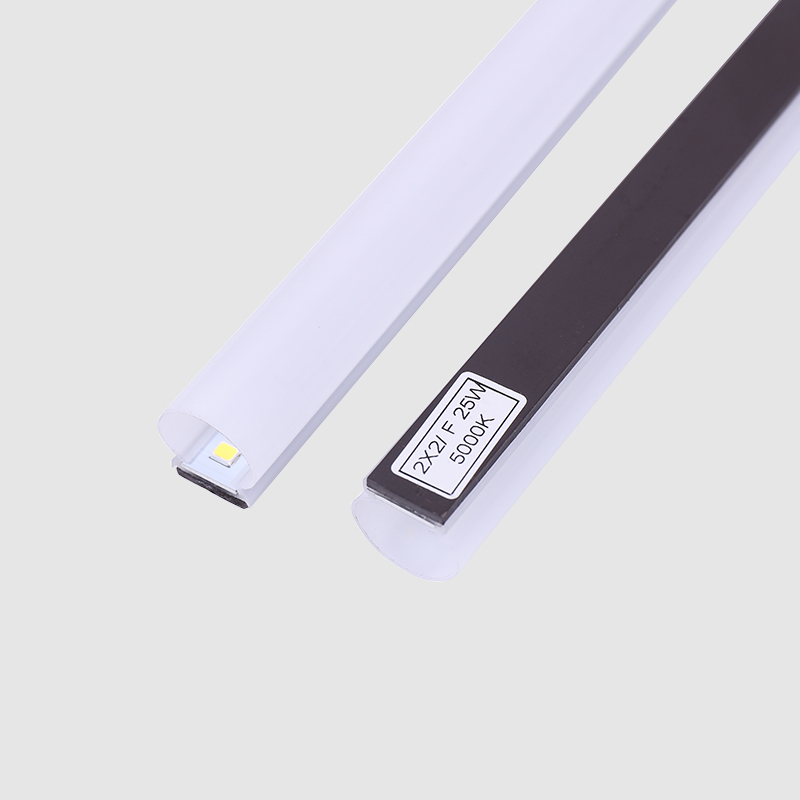

Frost Lens 2ft, 4ft, 8ft LED Magnetic Retrofit Kit

LED Linear Troffer Retrofit Kit Strips are economic LED replacements for 1’x4’, 2'x2' and 2'x4' existing recessed troffers in drop-in ceilings. The kits are magnetic backed for easy install, just need seconds.

ETL, DLC Certification
Color Temprature : 3500k, 4000k, 5000k
Voltage : 120-277V, 120-347V
Motion sensor and emergency battery optional

Customizable logo and packaging
Through various standards certification


Availability:



Inquire

Video

Features

Voltage：100-277V/60Hz, 120-347V optional
Patent No.: ZL 20162 0681919.6
Lumen Efficiency：Luminous Efficiency: >150 lm/w LED module, 135 lm/w Luminaire
Power Factor：up to 0.998
CCT：3000, 3500, 4000, 5000K
Mounting method：Magnetic led strips and driver, quick-connect
Replacements: Retrofit 2’ x 2’, 1’ x 4’, and 2’ x 4’ “troffers” and 4’ and 8’ linear fluorescent fixtures
Dimmable is also available
Frost lens is available

Application

The Magnetic LED Retrofit Kit Strips replace traditional tubes in a variety of commercial applications, including offices, lobbies, hallways and conference rooms in schools, libraries, airports, showrooms and hospitality environments.

School, office
Hospital, conference romm
Shipping centers,hospitals, universities etc
Specially used in some indoor commercial lighting environments

Accessories

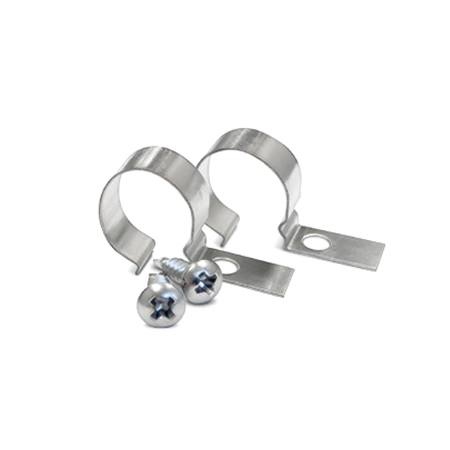

Clips

Connector

Details

Magnetic driver

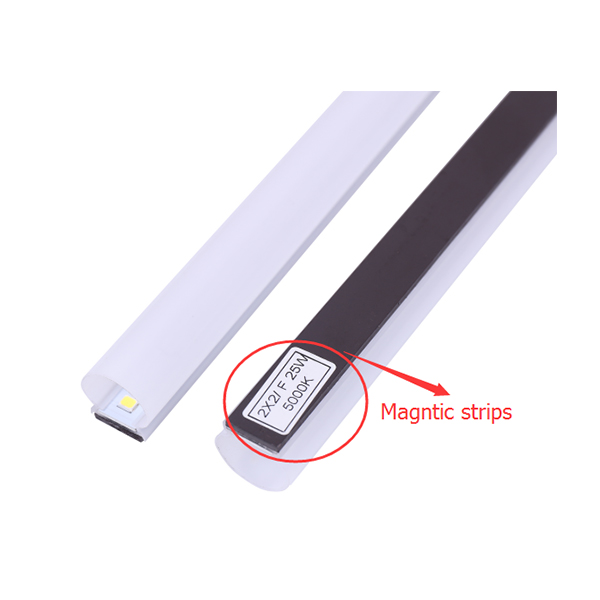

Magnetic strips

Related Products

3CCT+4Power Tunable LED Wraparound

3CCT 4Wattage selectable LED Linear Strip Light

Non Frost Lens 2ft, 4ft, 8ft LED Magnetic Retrofit Kit

3CCT, 3Watt Tunable 2ft, 4ft, 8ft LED Vapor Tight Fixture

Inquire Now

Item	Specification	Model
		R4-22TRF25WXXK	R6-24TRF36WXXK	R6-24TRF50WXXK	R4-24TRF3S40WXXK	R4-28TRF4S50WXXK
General Performance	Power Consumption	25W	50W	40W	40W	50W
	Lumens Delivered	2650lm	5000lm	7220lm	4500lm	6095lm
	Efficacy(lm/w)	105	145	135	105	125
	CRI	80
	Color Temperature	4000K/ 4500K /5000K
	Lifetime(hours)	50,000
	Color Consistency	Proprietary binning for uniform color
	Power Factor	0.99
	Input voltage	100-277V standard
Physical	Housing	Plastic
	Mounting	Magnetic
	Humidity	20%-85% RH, non-condensing

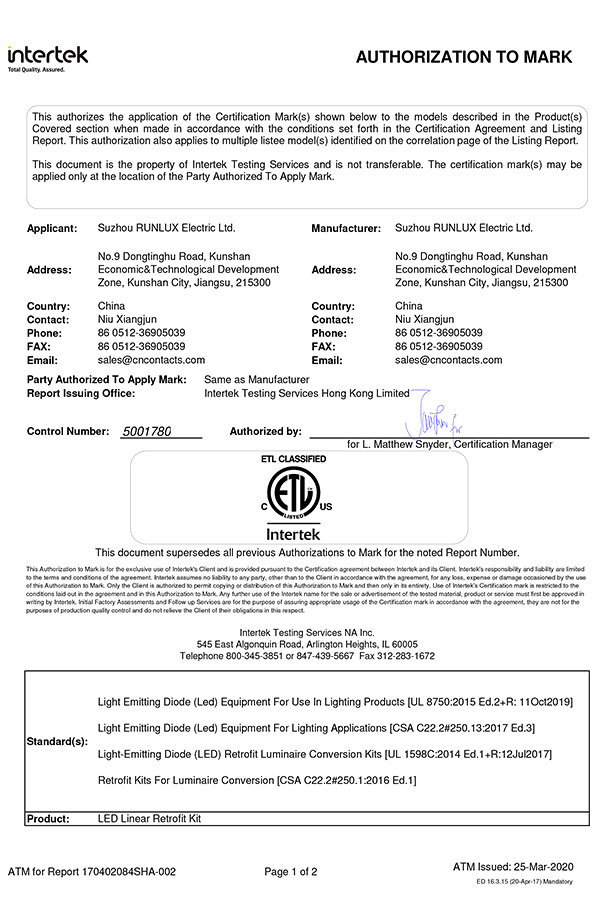

Certification	Certification	FCC, LM-79, LM-80(LED), ETL(pending), DLC(pending)
	Material usage	RoHS compliant; no mercury
	Environment	Damp-listed
	Warranty	5 years limited

Item	Specification	Model
		R4-22TRF25WXXK	R6-24TRF36WXXK	R6-24TRF50WXXK	R4-24TRF3S40WXXK	R4-28TRF4S50WXXK
General Performance	Power Consumption	25W	50W	40W	40W	50W
	Lumens Delivered	2650lm	5000lm	7220lm	4500lm	6095lm
	Efficacy(lm/w)	105	145	135	105	125
	CRI	80
	Color Temperature	4000K/ 4500K /5000K
	Lifetime(hours)	50,000
	Color Consistency	Proprietary binning for uniform color
	Power Factor	0.99
	Input voltage	100-277V standard
Physical	Housing	Plastic
	Mounting	Magnetic
	Humidity	20%-85% RH, non-condensing
Certification	Certification	FCC, LM-79, LM-80(LED), ETL(pending), DLC(pending)
	Material usage	RoHS compliant; no mercury
	Environment	Damp-listed
	Warranty	5 years limited

Frost Lens 2ft, 4ft, 8ft LED Magnetic Retrofit Kit
