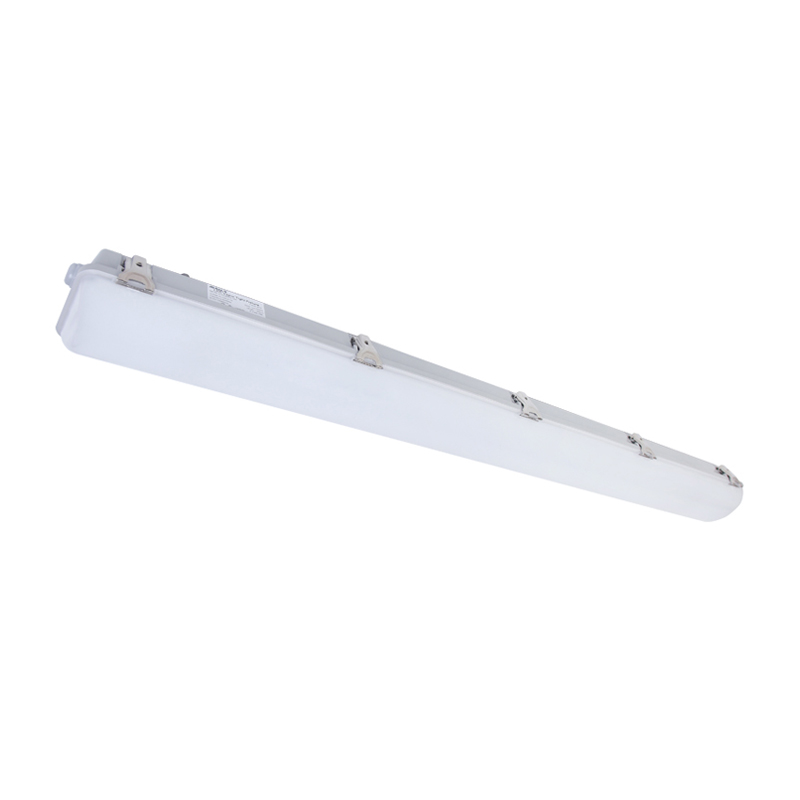

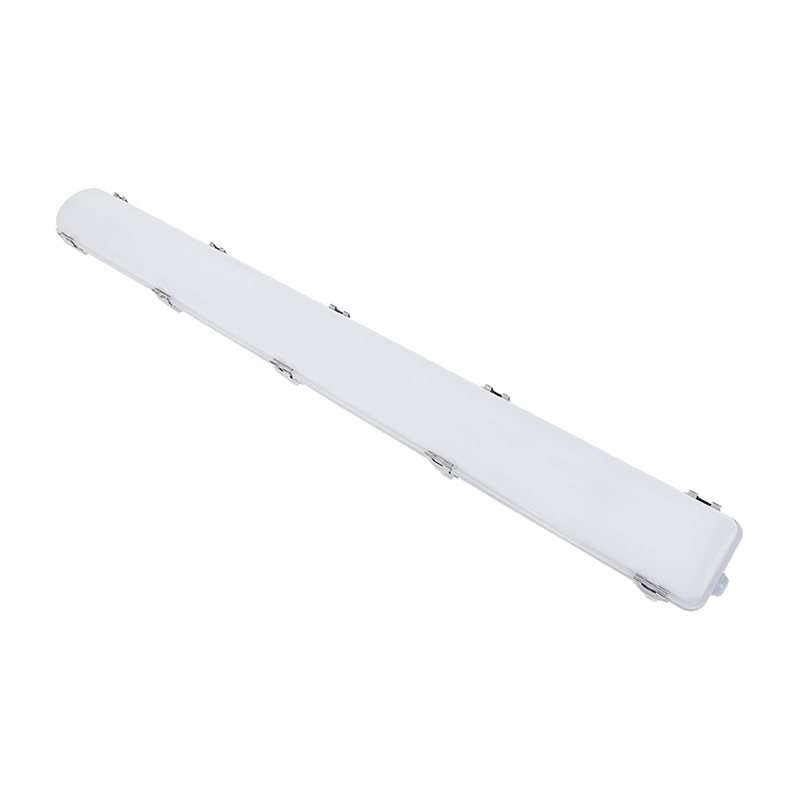

4ft Classic LED Vapor Tight Fixture 36, 46w, 65w

LED Vapor tight waterproof light Perfect replacement for the whole set of T8 fluorescent luminaire . and can be surface mounted or suspended. It with motion sensor or automatic dimming, more energy efficient and longer life . Emergency for 90 minutes and flicker-free.

ETL, DLC Certification
Color Temprature : 3500k, 4000k, 5000k. Or 3CCT in one fixture
Voltage : 120-277V, 120-347V
Motion sensor and emergency battery optional

Customizable logo and packaging
Through various standards certification
Availability:
sharethis sharing button

Video

Features

  • IP66 LED module waterproof luminaire

  • IK10 Rating

      36W, 46W, 65W

  • NEMA 4X certificated

      NSF for food processing facilities

  • Input: AC120-277V, 50/60HZ, 120-347V as optional

  • Perfect replacement for the whole set of T8 fluorescent luminaire

  • Lifetime: Limited 5 years by DLC premium

  • Built-in sensor is optional. Emergency battery back up available

  • Work in -40°C ~+40°C temp

Application

Typical applications include commercial and manufacturing facilities, Parking Garages, warehouse lighting fixtures, and retail aisles.

  • Warehouses, factories & food storage

  • Refrigerated Storage

  • Farm

  • Specially used in some indoor industry lighting environments

Accessories

External sensor


Built in sensor


Plug and mounting clips



Details

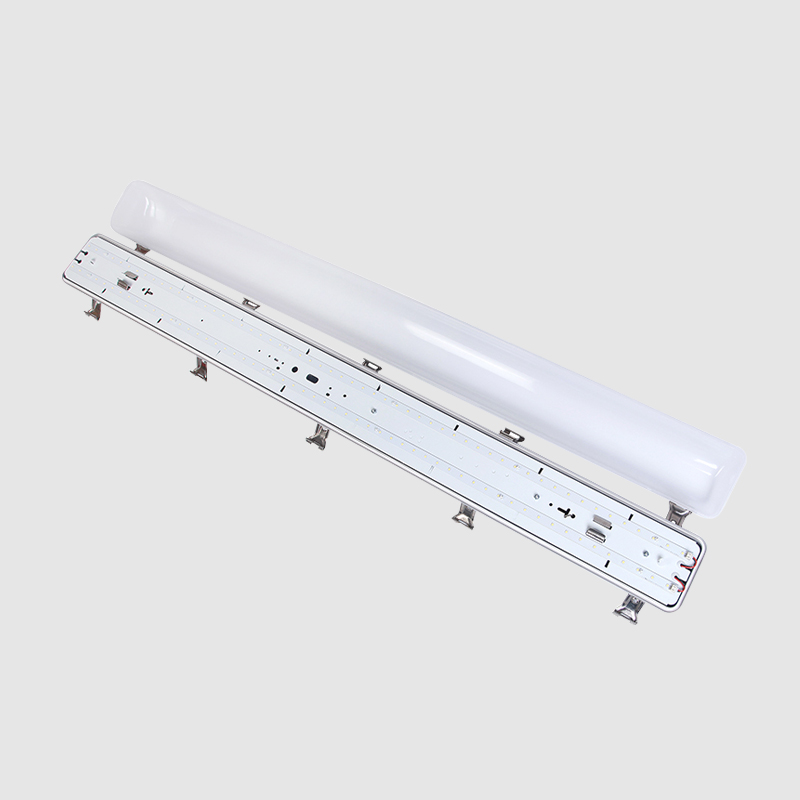

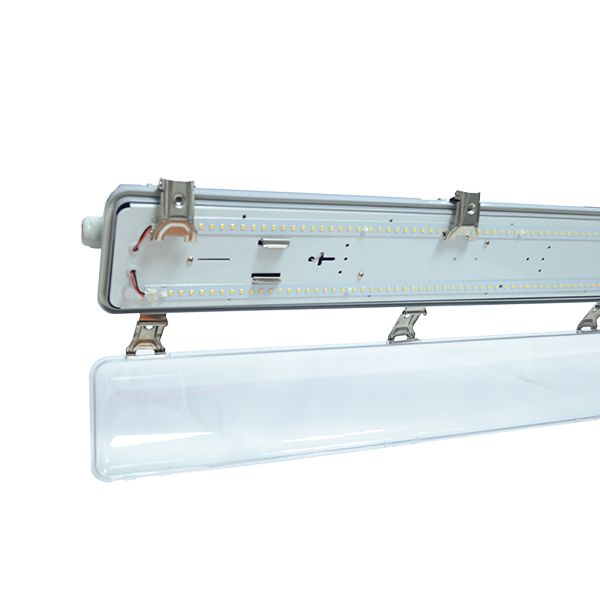

One piece design

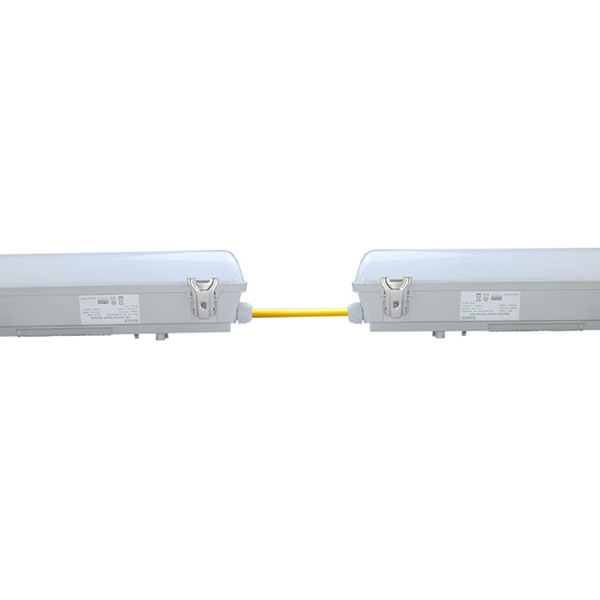

Connectable vapor tight






Specification

Item Specification Model
R2-4VTM36WD-XXK R2-4VTM46WD-XXK R2-4VTM65WD-XXK
General Performance Power Consumption 36W 46W 65W
Lumens Delivered 4680 5980 8450
Efficacy(lm/w) 130
CRI 80
Color Temp. 4000K, 5000K
Lifetime(H) 50,000
Size 45.66"*4.72"*4.29"(1160*120*109mm)
Power Factor ≥0.9
Input voltage 120-277V standard (120-347V as optional)
Physical Housing PC
Humidity 20%-85% RH, non-condensing
Certification Certification ETL, cETL, DLC Premium, NEMA 4X, IP66, IK10
Material usage RoHS compliant; no mercury
Environment Wet location listed
Warranty 5 years limited

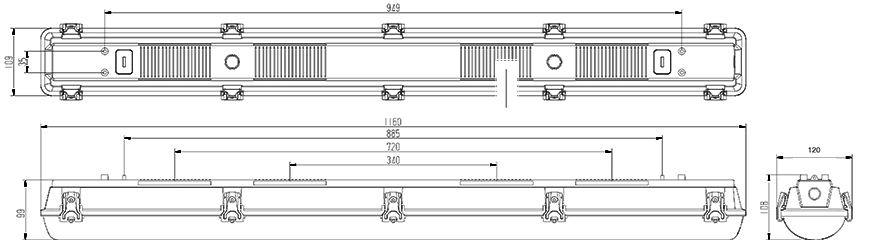

Product Dimension

Light Distribution Curve

Certification

ETL







Download
