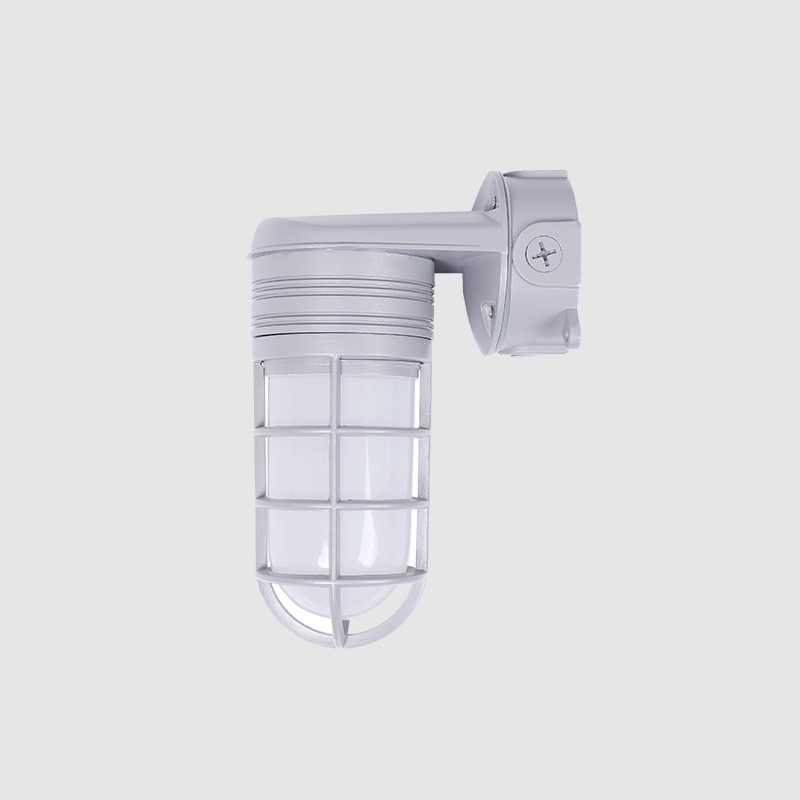

Jelly Jar

LED Vapor-Proof Jelly Jar Lights. The wall-mount, ceiling-mount, are ETL Listed for wet locations and can be exposed to chemical vapors without the risk of fire or combustion. These fixtures have heavy-duty die cast aluminum housings with built-in LED-cooling heat sinks. LEDs are protected by a frosted glass lens that allows for even light distribution, and the lens is caged for durability. Each of these vapor-proof LED lights is designed to last 42 times longer than incandescent bulbs.

Customizable logo and packaging
Through various standards certification
Availability:
sharethis sharing button

Features

● Efficacy exceeding 100Lm/W allows replacement of 60W

   incandescent or 15W CFL;

● 80 CRI may be as optional;

● Universal 120-277V power supply;

DOB type working voltage is 120V+/-10%;

● Power Factor > 0.9; THD < 25%;

● Rated for 50,000-hour L70 lifetime at TM-21 standards,

● Operating Temperature: -40°F - 104°F;

Application

They can be used for warehouse lighting, marine lighting, food processing plants, commercial laundromat lighting, coolers/freezers, tunnels, and more.

Accessories

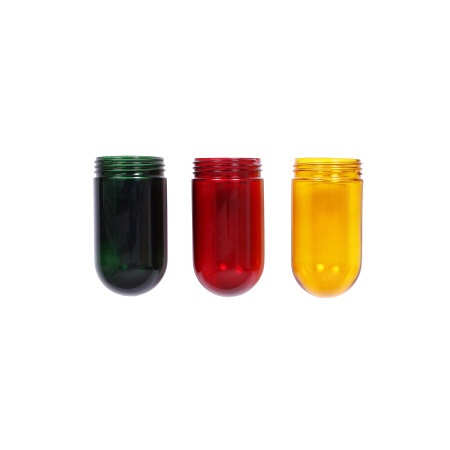

Colored glass cover







Details

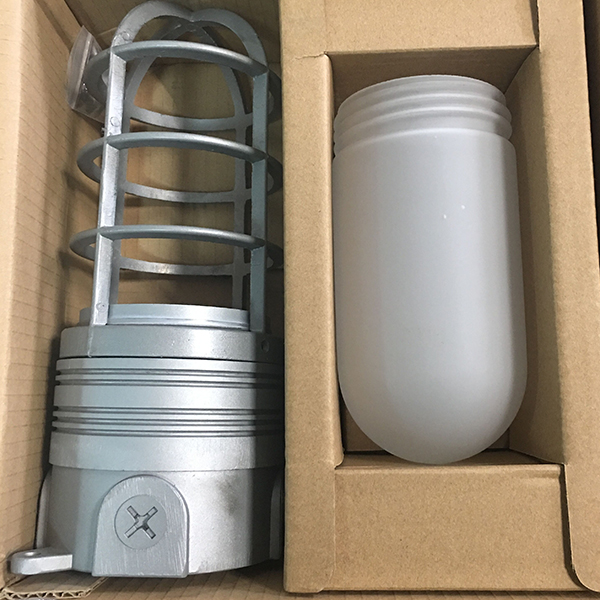

Ceiling mount jelly jar package

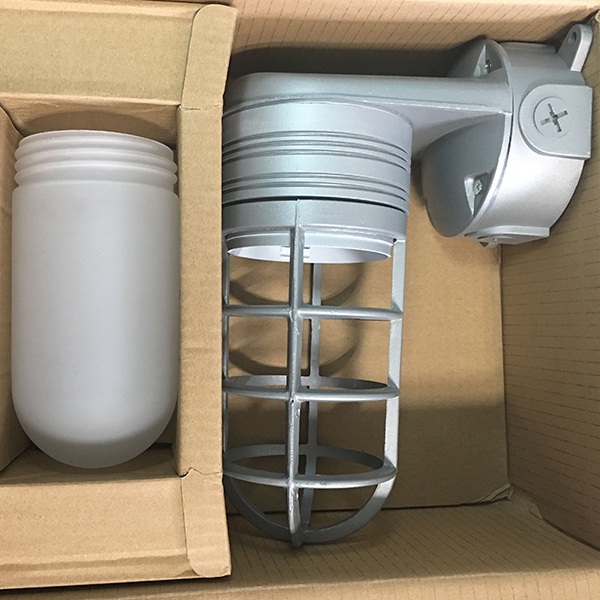

Wall mount jelly jar package






Specification

Item Specification Model
R1-VJ14WWMG-XXK R1-VJ14WCMG-XXK R2-VJ14WDAWMG-XXK R2-VJ14WDACMG-XXK
General Performance Power Consumption(w) 14W
Lumens Delivered(lm) 900lm/750lm
Efficacy(lm/w) 75
Color Temperature 4000K/5000K
Lifetime(hours) 50,000
Spacing Criteria Available Upon Request
Color Consistency Proprietary binning for uniform color
Power Factor 0.9
Input voltage 120-277V standard
Physical Housing Aluminum
Mounting Wall mount Ceiling mount
Working Temperature -40°F - 104°F
Application Certification FCC, ETL
Material usage RoHS compliant; no mercury
Environment Wet locations
Warranty 5 years limited

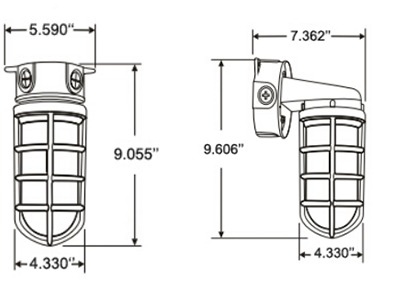

Product Dimension

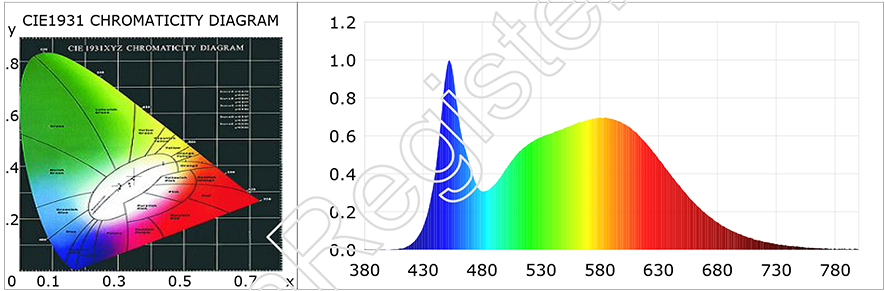

Light Distribution Curve

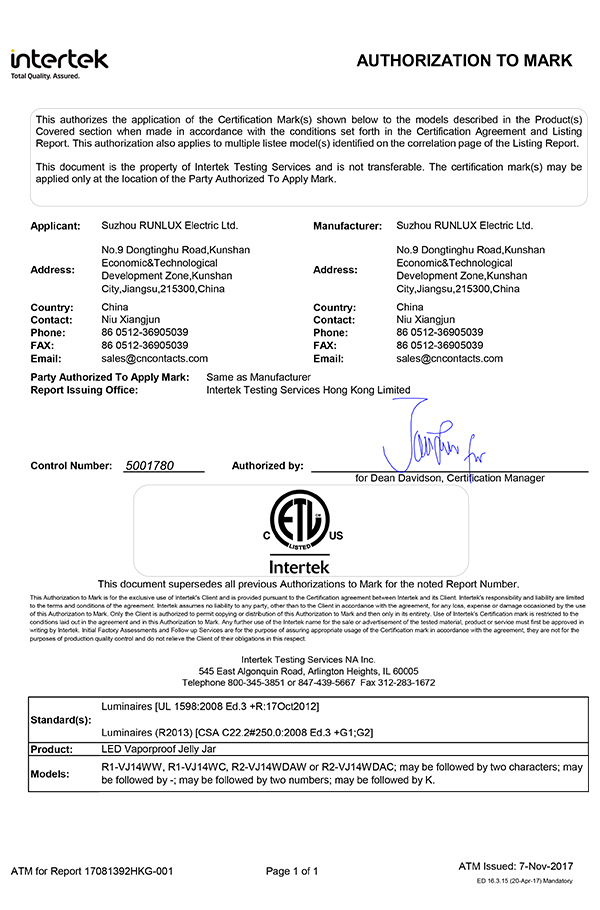

Certification

ETL

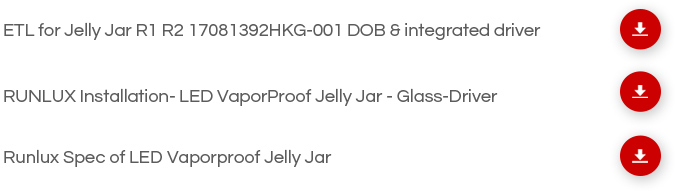

Download
