R6S
RUNLUX

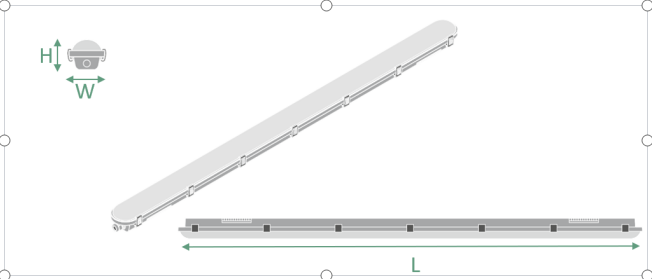

Dimensions
Model | Length | Width | Height |
2 FT | 26.06 inch [662mm] | 2.68 inch [68mm] | |
4 FT | 47.24 inch [1200mm] | 3.15 inch [80mm] | 2.68 inch [68mm] |
5 FT | 59.05 inch [1500mm] | 3.15 inch [80mm] | 2.68 inch [68mm] |
Model | Part No. | Power | Lumen | Size | Efficiency |
2FT/4FT/5FT, Single CCT, Single Power, NSF | |||||
2 FT | R6S-2WPM20WL-XXK | 20W | 2600lm | 662x80x68mm | 130lm/W |
4 FT | R6S-4WPM36WL-XXK | 36W | 4680lm | 1200x80x68mm | 130lm/W |
4 FT | R6S-4WPM40WL-XXK | 40W | 5200lm | 1200x80x68mm | 130lm/W |
5 FT | R6S-5WPM36WL-XXK | 36W | 4680lm | 1500x80x68mm | 130lm/W |
5 FT | R6S-5WPM50WL-XXK | 50W | 6500lm | 1500x80x68mm | 130lm/W |
2FT/4FT/5FT, 3CCT and 4 Power Selectable, NSF | |||||
2 FT | R6S-2WPM20WL4P-3CK | 20W/17W/14W/10W | 2600lm | 662x80x68mm | 130lm/W |
4 FT | R6S-4WPM35WL4P-3CK | 35W/30W/25W/20W | 4550lm | 1200x80x68mm | 130lm/W |
4 FT | R6S-4WPM40WL4P-3CK | 40W/35W/30W/23W | 5200lm | 1200x80x68mm | 130lm/W |
4 FT | R6S-4WPM50WL4P-3CK | 50W/45W/38W/30W | 6500lm | 1200x80x68mm | 130lm/W |
5 FT | R6S-5WPM40WL4P-3CK | 40W/35W/30W/23W | 5200lm | 1500x80x68mm | 130m/W |
5 FT | R6S-5WPM50WL4P-3CK | 50W/45W/38W/30W | 6500lm | 1500x80x68mm | 130lm/W |
5 FT | R6S-5WPM60WL4P-3CK | 60W/50W/42W/35W | 7800lm | 1500x80x68mm | 130lm/W |
Advantages
- High power LED chips for high system efficiency up to 130 lumen/watt
- Milky and anti-glare lens optional

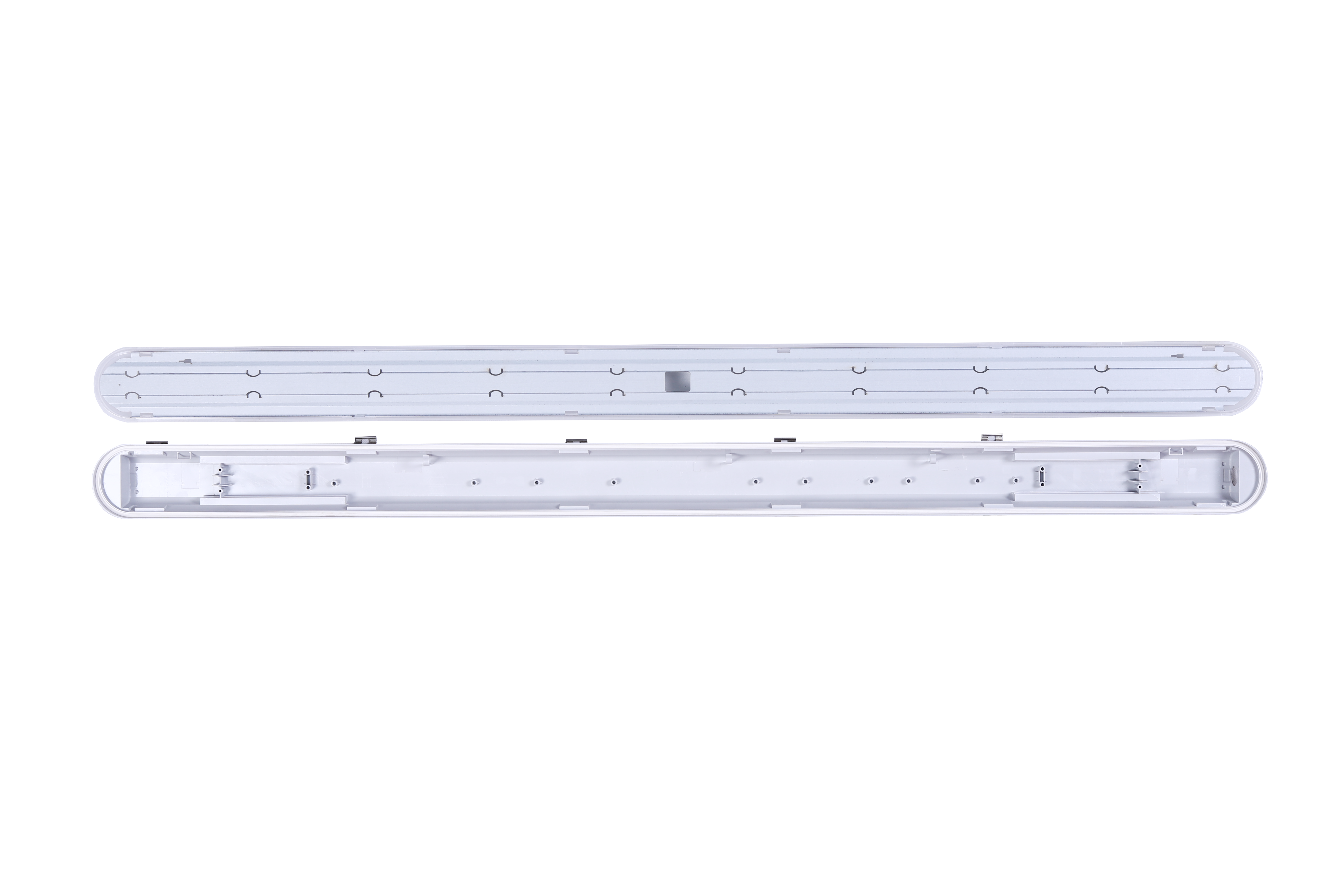

- Integrated LED gear tray and lens for quick installation
- Practical cable entries in the rear, face, and side significantly simplify the installation
- Manufacturing in China, and also Cambodia for TAA compliant
Features
l Product length in 2FT, 4ft & 5FT to meet the majority of market needs
l Polycarbonate constructed body and lens and supplied with stainless steel latches
l Housing thickness of 2.0mm to achieve solid structure and 5VA flaming resistant
l NSF certificated for food processing facilities
l Selectable 3CCT: 3000K/4000K/6500K; or 3500K/4000K/5000K;
l Selectable 4Power
l Optional input voltage 220-240V,120~277V
l Emergency and sensor options available
l 3 Years warranty as standard; 5 Years warranty for optional
Dimensions
Model | Length | Width | Height |
2 FT | 26.06 inch [662mm] | 2.68 inch [68mm] | |
4 FT | 47.24 inch [1200mm] | 3.15 inch [80mm] | 2.68 inch [68mm] |
5 FT | 59.05 inch [1500mm] | 3.15 inch [80mm] | 2.68 inch [68mm] |
Model | Part No. | Power | Lumen | Size | Efficiency |
2FT/4FT/5FT, Single CCT, Single Power, NSF | |||||
2 FT | R6S-2WPM20WL-XXK | 20W | 2600lm | 662x80x68mm | 130lm/W |
4 FT | R6S-4WPM36WL-XXK | 36W | 4680lm | 1200x80x68mm | 130lm/W |
4 FT | R6S-4WPM40WL-XXK | 40W | 5200lm | 1200x80x68mm | 130lm/W |
5 FT | R6S-5WPM36WL-XXK | 36W | 4680lm | 1500x80x68mm | 130lm/W |
5 FT | R6S-5WPM50WL-XXK | 50W | 6500lm | 1500x80x68mm | 130lm/W |
2FT/4FT/5FT, 3CCT and 4 Power Selectable, NSF | |||||
2 FT | R6S-2WPM20WL4P-3CK | 20W/17W/14W/10W | 2600lm | 662x80x68mm | 130lm/W |
4 FT | R6S-4WPM35WL4P-3CK | 35W/30W/25W/20W | 4550lm | 1200x80x68mm | 130lm/W |
4 FT | R6S-4WPM40WL4P-3CK | 40W/35W/30W/23W | 5200lm | 1200x80x68mm | 130lm/W |
4 FT | R6S-4WPM50WL4P-3CK | 50W/45W/38W/30W | 6500lm | 1200x80x68mm | 130lm/W |
5 FT | R6S-5WPM40WL4P-3CK | 40W/35W/30W/23W | 5200lm | 1500x80x68mm | 130m/W |
5 FT | R6S-5WPM50WL4P-3CK | 50W/45W/38W/30W | 6500lm | 1500x80x68mm | 130lm/W |
5 FT | R6S-5WPM60WL4P-3CK | 60W/50W/42W/35W | 7800lm | 1500x80x68mm | 130lm/W |
Advantages
- High power LED chips for high system efficiency up to 130 lumen/watt
- Milky and anti-glare lens optional
- Integrated LED gear tray and lens for quick installation
- Practical cable entries in the rear, face, and side significantly simplify the installation
- Manufacturing in China, and also Cambodia for TAA compliant
Features
l Product length in 2FT, 4ft & 5FT to meet the majority of market needs
l Polycarbonate constructed body and lens and supplied with stainless steel latches
l Housing thickness of 2.0mm to achieve solid structure and 5VA flaming resistant
l NSF certificated for food processing facilities
l Selectable 3CCT: 3000K/4000K/6500K; or 3500K/4000K/5000K;
l Selectable 4Power
l Optional input voltage 220-240V,120~277V
l Emergency and sensor options available
l 3 Years warranty as standard; 5 Years warranty for optional
