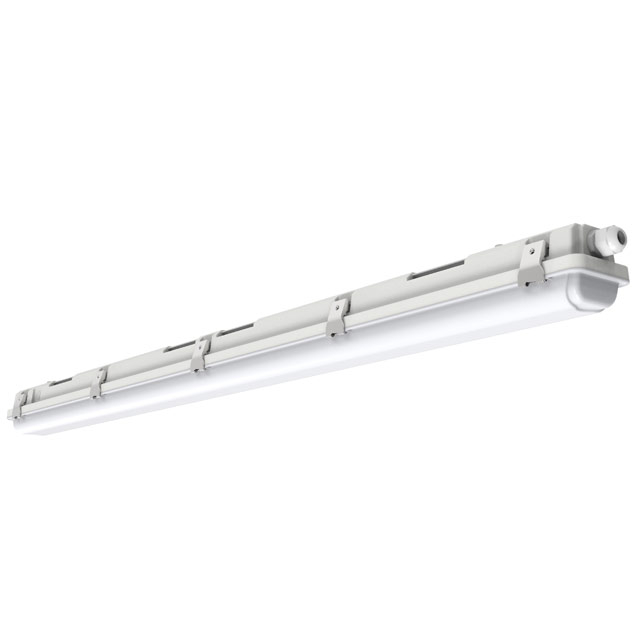

R7 New series 4FT LED Vapor Tight Linear Tri Proof Fixture

LED Vapor tight waterproof light Perfect replacement for the whole set of T8 fluorescent luminaire . and can be surface mounted or suspended. It with motion sensor or automatic dimming, more energy efficient and longer life . Emergency for 90 minutes and flicker-free.

ETL, DLC Certification
Color Temprature : 3500k, 4000k, 5000k. Or 3CCT in one fixture
Voltage : 120-277V, 120-347V
Motion sensor and emergency battery optional

Customizable logo and packaging
Through various standards certification


Availability:



Inquire

Features

New molding
3CCT, 3Watt tunable
IP66 led vapor tight
IK10 Rating
Input: AC220-240V, 120-277V, 50/60HZ, 120-347V as optional
Perfect replacement for the whole set of T8 fluorescent luminaire
Built-in sensor is optional. Emergency battery back up available
Work in -40°C ~+40°C temp

Application

Typical applications include commercial and manufacturing facilities, Parking Garages, warehouse lighting fixtures, and retail aisles.

Warehouses, factories & food storage
Refrigerated Storage
Farm
Specially used in some indoor industry lighting environments

Accessories

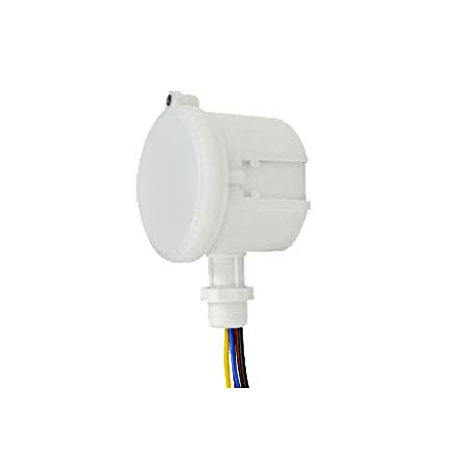

External sensor

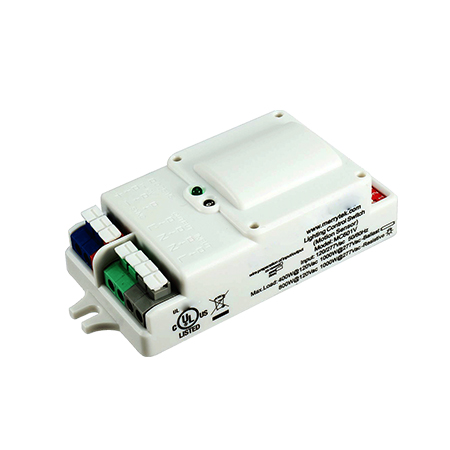

Built in sensor

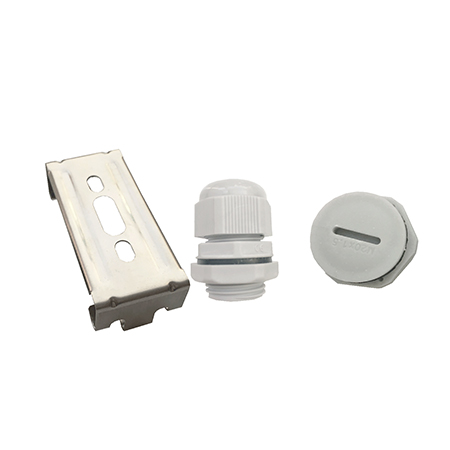

Plug and mounting clips

Related Products

3CCT, 3Watt Tunable 2ft, 4ft, 8ft LED Vapor Tight Fixture

Lumen & CCT Selectable LED Vapor Tight High Bay

Inquire Now

Model Number	Power	Lumen (lm)	Ra	CCT	Voltage	Size	PF
R7-2VTM25WD(HV1)3P-3CK	25W/20W/15W	3500	80	3500K/4000K/5000K in one fixture 3CCT	120-277V, 120-347V or 220- 240V	2FT	>0.9
R7-4VTM35WD(HV1)3P-3CK	35W/28W/20W	4960	80			4FT
R7-4VTM40WD(HV1)3P-3CK	40W/30W/20W	5600	80			4FT
R7-4VTM46WD(HV1)3P-3CK	46W/38W/30W	6440	80			4FT
R7-8VTM90WD(HV1)4P-3CK	90W/75W/65W/ 55W	13500	80			8FT

Model Number	Power	Lumen (lm)	Ra	CCT	Voltage	Size	PF
R7-2VTM25WD(HV1)3P-3CK	25W/20W/15W	3500	80	3500K/4000K/5000K in one fixture 3CCT	120-277V, 120-347V or 220- 240V	2FT	>0.9
R7-4VTM35WD(HV1)3P-3CK	35W/28W/20W	4960	80			4FT
R7-4VTM40WD(HV1)3P-3CK	40W/30W/20W	5600	80			4FT
R7-4VTM46WD(HV1)3P-3CK	46W/38W/30W	6440	80			4FT
R7-8VTM90WD(HV1)4P-3CK	90W/75W/65W/ 55W	13500	80			8FT
