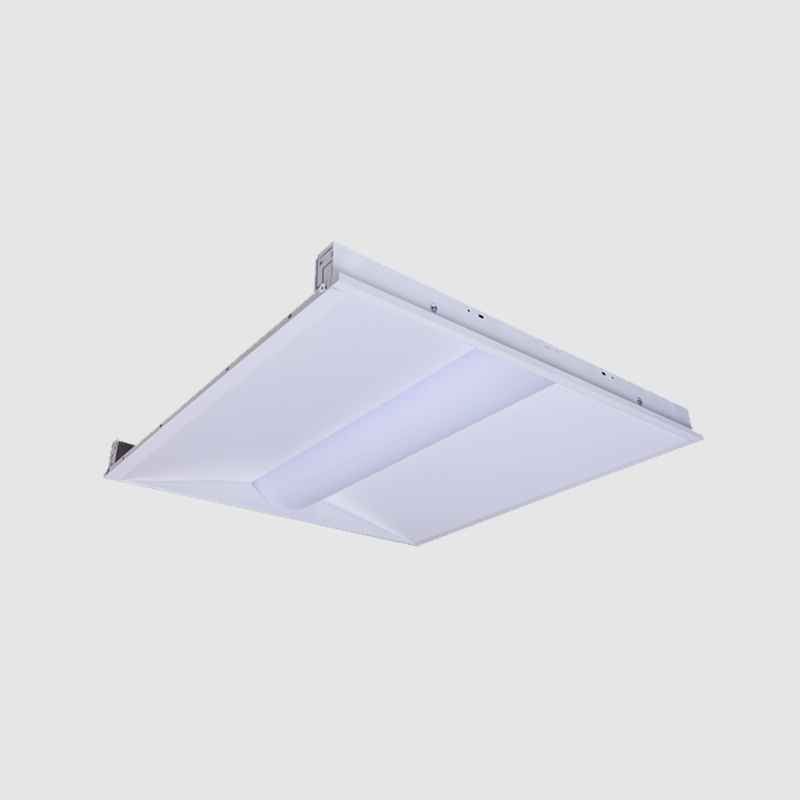

2ft 3CCT+4Power Tunable LED Troffer

With higher efficiency and a longer life over fluorescent fixtures, our LED troffers offer substantial energy and maintenance savings. Our center basket troffers feature a large access panel on the back of the fixture to allow for easy installation and servicing.

ETL, DLC Certification
Color Temprature : 3500k, 4000k, 5000k
Voltage : 120-277V, 120-347V
Motion sensor and emergency battery optional

Customizable logo and packaging
Through various standards certification
Availability:
sharethis sharing button

Video

Features

  • Voltage:120-277V/60Hz, 120-347V/60Hz as optional

  • Lumen Efficiency:DLC premium ≥125Lm/w Luminaire

  • CCT: 3500, 4000 and 5000K

      3CCT: One fixture 3 color temp(3500K,4000K,5000K)

  • All dimmable 0-10V, PMW

  • 4 wattage selectable in troffer of 2’x2’ and 2’x4’

  • Ambient Temperature:-25℃~45℃

  • Environment: Indoor / Dry / IP40

  • Warranty: 5 years limited

Application

Our LED troffers are commonly used in offices, schools, and other commercial recessed grid indoor applications.

  • Offices, schools

  • Retaril, supermarkt

  • Shipping centers,hospitals, universities etc

  • Specially used in some indoor commerical lighting environments

Accessories

Daylight Harvest Microwave Sensors, BRI810-B-D-VAL  V1.0


Emergency battery





Details

3CCT & 4watt tunable switch

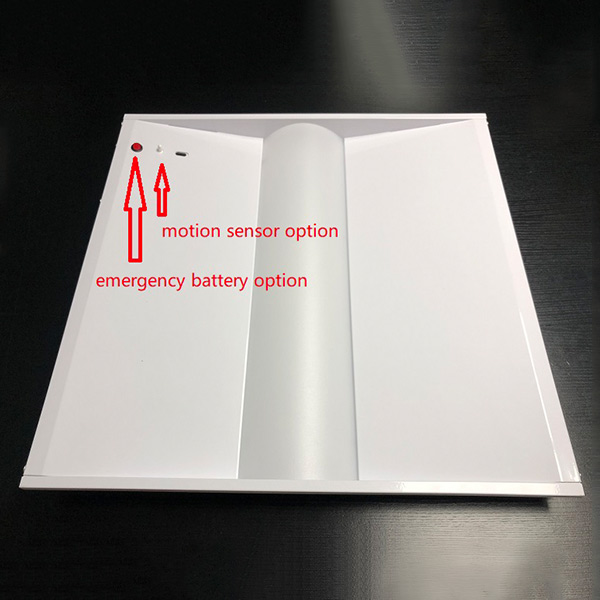

Sensor & emergency battery option

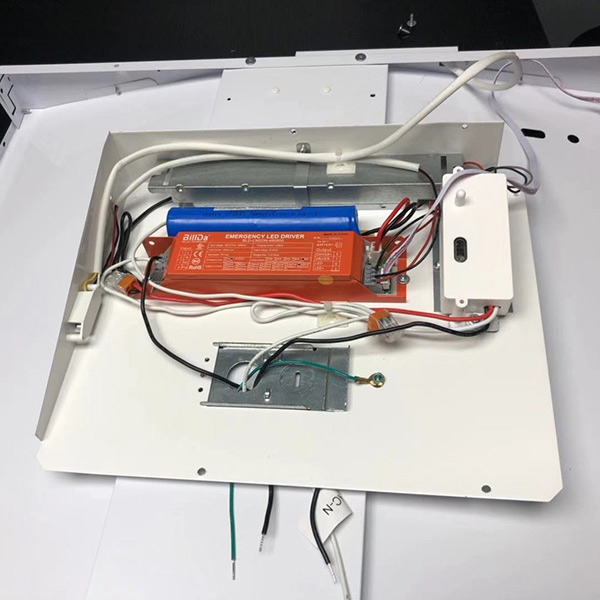

With motion and emergency battery




Specification

Item Specification Model

R3-22TL32WD4P3C

R3-24TL49WD4P3C

R3-22TL26WD-3CCT

R3-24TL39WD-3CCT

R3-22TL26WDHV1-

3CCT

R3-22TL39WDHV1-

3CCT

General Performance

Power Consumption

(W)

32W max

(32W &28W  &24W&20W in one fixture)

49W max

(49W &40W  &36W&32W in one fixture)

26W

39W

26W

39W

Lumens Delivered(lm)

4000 max 6125 max

3250

4875

3250

4875

Efficacy(lm/w)

≥125

CRI

≥80

CCT

3CCT(3500K/4000K/5000K all in one fixture)

Electrical

Power factor

≥0.9

Input Voltage

120-277AC

120-347V
Physical

Mounting

Mounts into existing recessed frame

Operating Temp

-25℃ to 45℃

Humidity

10-85% RH, non-condensing

Certification

Certification

ETL, cETL, LM79, DLC Premium

Material Usage

RoHS compliant, no mercury

Environment

Indoor/Damp

Warranty

5 Years Limited Warranty

Product Dimension

Light Distribution Curve

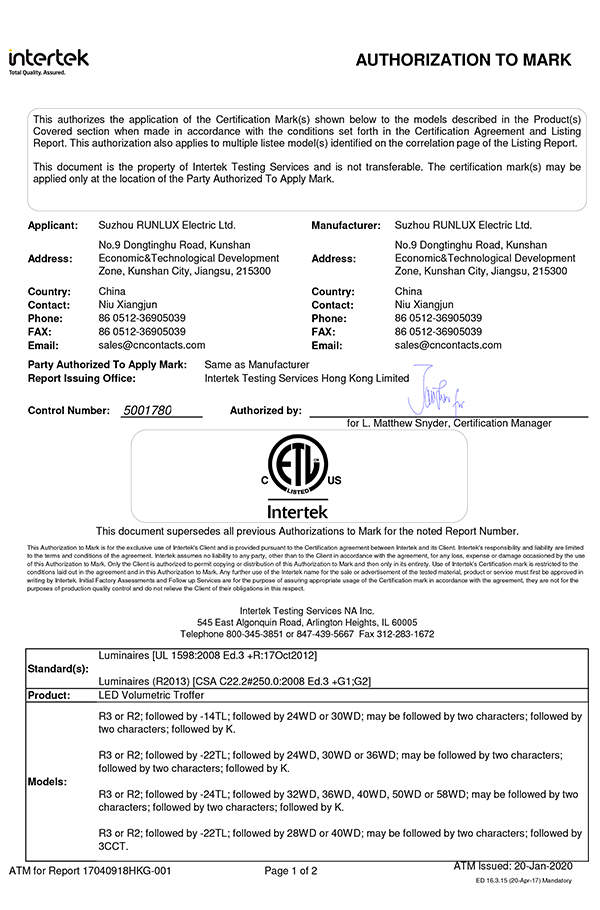

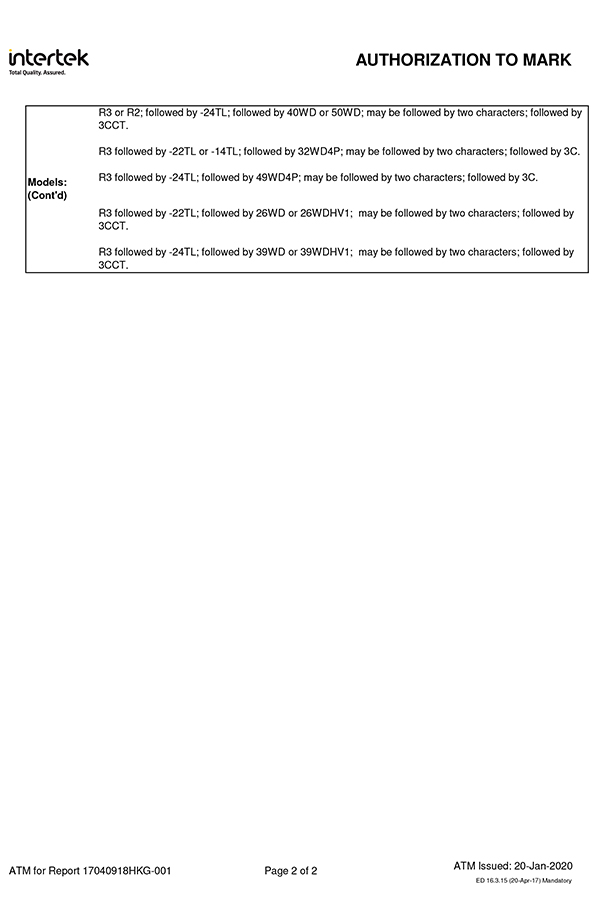

Certification

ETL


ETL

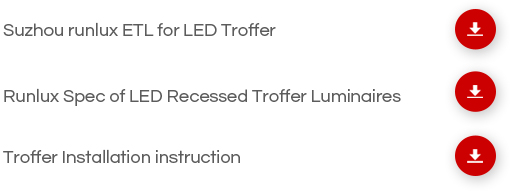

Download
