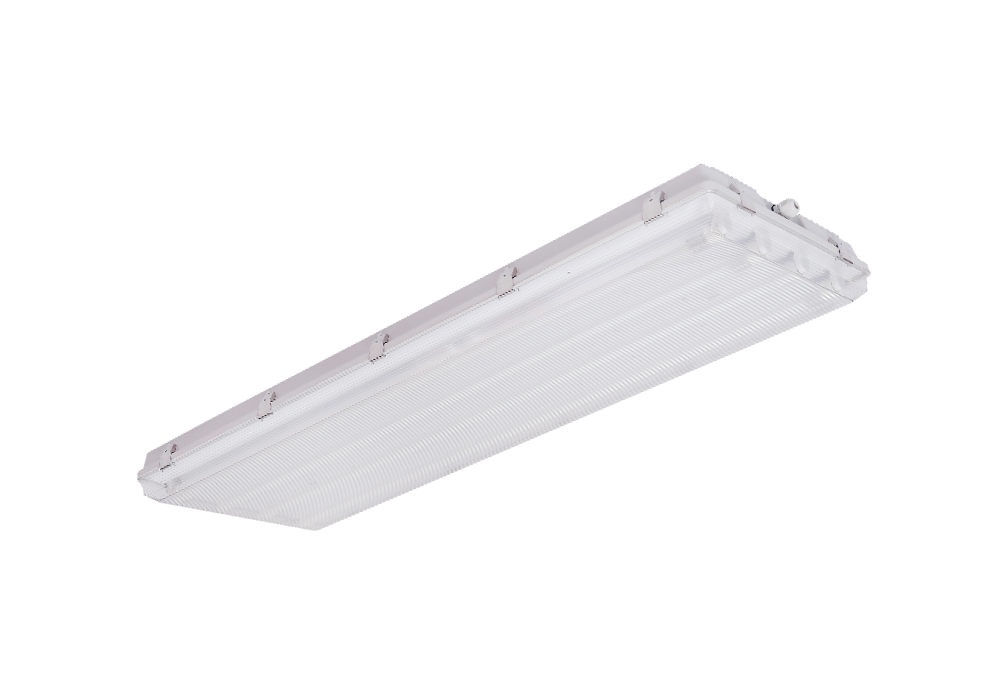

R1W Series T8 LED Tube-Waterproof Fixture (4FT Wide with 4-tubes or 6-tubes)
Features:
*PC lamp bottom +PC lampshade
*Spraying electrical panels
*PC plastic buckle, stainless-steel mounting bracket
*Shock resistance level up to IK08
*Protection rating up to IP65
*Double-end Input wiring
*Easy installation and lamp tube replacement
*Multiple installation methods
Body material: PC
Lamp Type: T5/T8 LED Tubes
Specification
Type | Specifications | Dimension(mm) | Mounting Distance(mm) | CTN MEAS(cm) | PCS/CTN | CLIPS |
R1W series | 4x 36W 6x 36W | 1270*441.8*115 | 905 | 129*45*14 | 1 | 14 14 |
R1W Series T8 LED Tube-Waterproof Fixture (4FT Wide with 4-tubes or 6-tubes)
Features:
*PC lamp bottom +PC lampshade
*Spraying electrical panels
*PC plastic buckle, stainless-steel mounting bracket
*Shock resistance level up to IK08
*Protection rating up to IP65
*Double-end Input wiring
*Easy installation and lamp tube replacement
*Multiple installation methods
Body material: PC
Lamp Type: T5/T8 LED Tubes
Specification
Type | Specifications | Dimension(mm) | Mounting Distance(mm) | CTN MEAS(cm) | PCS/CTN | CLIPS |
R1W series | 4x 36W 6x 36W | 1270*441.8*115 | 905 | 129*45*14 | 1 | 14 14 |
